Remanufactured products only require 15-20% of the total energy and material it takes to manufacture new parts while keeping usable cores out of landfills.
CARDONE's skilled technicians and engineers can completely rebuild your part and return it to you, good as new. Learn More.
Product Description

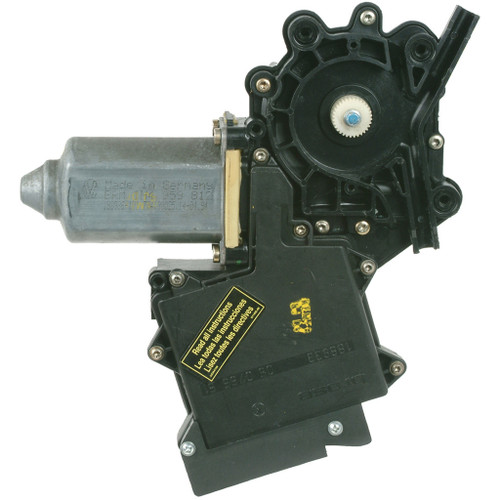

CARDONE Remanufactured Window Lift Motors are direct-fit O.E. replacements that began as Original Equipment cores. Each unit is re-engineered, renewed and tested to match O.E. performance. For nearly half a century, CARDONE Remanufactured Window Lift Motors have provided rock-solid reliability that you can trust for the long haul.
- Each motor is 100% tested. Testing includes loading the motor on a simulated window fixture to verify speed and strength of the motor
- For motors which have an auto up / down feature, output signals and pulse counts are matched to the vehicle application and motors are shipped in the ‘full up position’
- Every motor has its internal components inspected and gauged. Bushings are gauged and re-impregnated with lubricating oil, ball bearings are replaced with new and armatures are fully tested to ensure insulation
- Internal gears are gauged, inspected and renewed for reuse or replaced if out of spec. Replacement gears are redesigned with a stronger, less brittle material than O.E. to prevent premature wear, stripping and breakage
- Motor magnets are 100% recharged, guaranteeing efficiency and reliability
- Every remanufactured motor is assembled with the precise amount of lubricant to ensure quiet operation and long life
- Every remanufactured motor is fully compatible with the O.E. mounting and regulator
- As a remanufactured Original Equipment part, this unit guarantees a perfect vehicle fit.
- Our remanufacturing process is earth-friendly, as it reduces the energy and raw material needed to make a new part by 80%.
Complete the Check It Fits tool and confirm all information in the Fitment Details section above to ensure you select the right part for your application.
Metafield Product & Technical
Core
What is a core? A core is a used automotive part that is returned to the remanufacturer instead of being scrapped. Why return cores? Cores are literally at the “core” of the remanufacturing process, because they are the raw material used to start the remanufacturing process. That’s why remanufacturers buy cores back from customers, and they pay the most for good quality cores. If a core has too much damage in key areas, it may be unusable or require extra resources to process; therefore a reduced core payment may be awarded. This core policy explains potential deductions that may be taken from the core price if certain components are missing or damaged. What is remanufacturing? Remanufacturing is the process of taking used parts, completely disassembling and thoroughly cleaning them, replacing the worn components with original quality components, and restoring them to their original function. Every unit is 100% tested to ensure O.E. performance. Why “reman”? PRODUCTS - Reman captures used, durable goods like auto parts and puts them “back on the road” to new and sometimes better than new performance. Reman provides the opportunity for detection of common failure modes and incorporation of design improvements to prevent repeat failure.ECONOMY - Reman products cost consumers about 40% less than new. Reman products are one of the few “green” products that actually costs less than their “non-green” counterparts.
ENVIRONMENTAL - Reman saves up to 86% of the energy required to build a new unit. Reman realizes Greenhouse Gas savings of up to 25 lbs. per unit over new. Reman saves up to 85% of the raw material required to produce a new unit by reusing existing products. Reman is even more sustainable than recycling, as product castings are preserved rather than melted down to raw material, saving energy and reducing emissions.
Warranty Policy
Installation & Tech Checks
Core Policy
ProTech Bulletins
General
Part Type:
Power Window Motor
Product Condition:
Remanufactured
Lifecycle Status:
Available to Order
Package Contents:
Window Lift Motor, Instruction Sheet
Packaged Weight:
2.1000 lb
E-Waste:
Yes
Warranty:
1 Year/18,000 Mile
*A warranty must be returned to the parts supplier where the CARDONE product was
purchased and is subject to that part store's terms & conditions. If the parts retailer offers a
different warranty than the CARDONE warranty, the retailer’s policy will prevail.
Technical
Gear Included:
Yes
Mounting Hole Quantity:
4
Mounting Type:
Threaded Hole
Regulator Included:
No
Window Motor Use Location:
Rear Right
Wire Quantity:
15
